Punching Forming Machine for Dustbin Knife CNC 110 Tons Pneumatic Metal

1 set
MOQ
Negotiable
Price
Punching Forming Machine for Dustbin Knife CNC 110 Tons Pneumatic Metal
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G-350
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

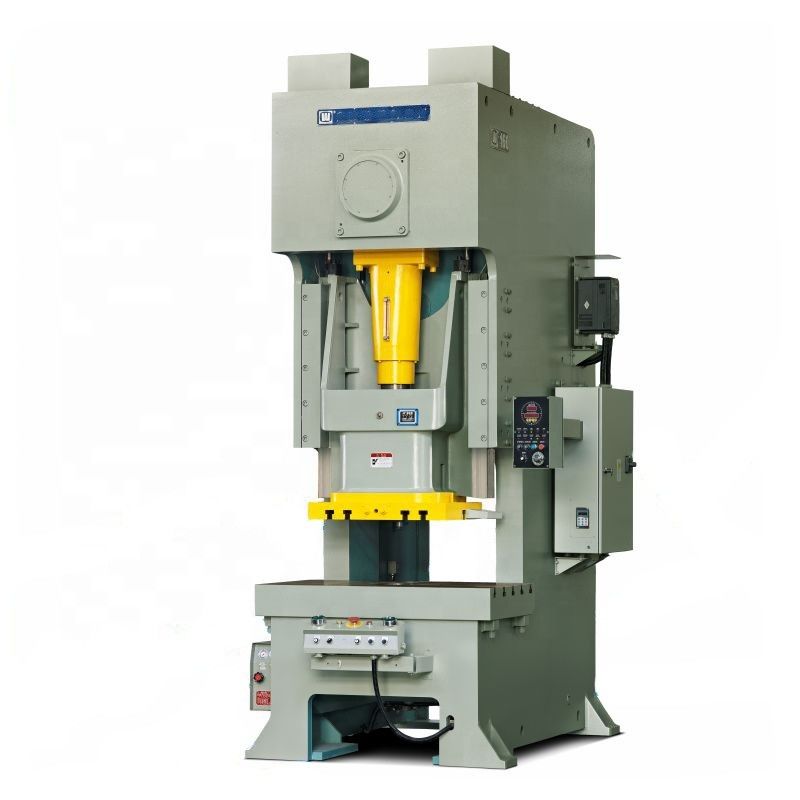

Punching Forming Machine for Dustbin Knife CNC 110 Tons Pneumatic Metal



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



  • Welded body with steel plate and high intensity.
  • The main motor is made by Siemens.
  • Adopts combined pneumatic friction clutch and brake.
  • Cluster gear adopts the flooding oil lubrication.
  • Six-face rectangle lengthen guide; JH21-315B/400B adopts an eight-face lengthen guideway.
  • Equipped with hydraulic overload protecting device.
  • JF21-25/25B/45 adopts manual shut height adjustment, among these types JF21-25/45 adopts scale display and JF21-25B with digital display.
  • JF21-63 and above type adopts electric shut height adjustment with digital display.
  • JH21-45 can equip with a die set height adjustment motor, the value will be displayed by digital.
  • JF21-25B, JF21-45 and above type equipped with lifting balance cylinder.
  • Duplex valves imported.
  • Electric compelling grease lubrication system.
  • The balancing cylinder adopts a manual lubrication system.
  • One set of blowing devices.
  • Controlled by PLC with international brand.
  • Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from an international brand.
  • Equipped with optional air cushion device, automatic feed shaft and photoelectric protector, which can be used to work with various automatic equipment.





Specifications:



ITEM UNIT JH21-25 JH21-45 JH21-60 JH21-80 JH21-125 JH21-160 JH21-200
Nominal Capacity KN 250 450 600 800 1250 1600 2000
Slide Stroke mm 80 120 140 160 180 200 220
Slide Strokes Fixed Times/min 100 80 70 60 50 45 45
Variable(optional) Times/min 60-100 50-80 45-70 40-60 35-50 30-45 25-45
Max. Die Height mm 250 270 300 320 350 400 450
Die Height Adjustment mm 50 60 70 80 90 100 110
Throat Depth mm 210 225 270 310 350 400 430
Distance Between Uprights mm 450 515 560 610 670 736 910
Slide Bottom Size Forward - Rear mm 250 340 400 460 520 580 650
Left - Right mm 360 410 480 540 620 700 880
Shank Hole Size Diameter mm 40 50 50 50 70 70 70
Depth mm 65 60 70 65 90 100 100
Bolster Size Forward - Rear mm 400 440 520 600 680 760 840
Left - Right mm 720 825 930 950 1100 1170 1390
Thickness mm 80 110 130 140 155 165 180
Bed Opening Hole Diameter mm 150 150 150 180 200 220 250
Overall Dimensions Forward -Rear mm 1496 1585 1540 1765 2040 2305 2600
Left - Right mm 945 1075 1200 1200 1320 1420 1540
Height mm 2120 2391 2570 2725 3035 3215 3800
Motor Power KW 3 5.5 5.5 7.5 11 15 18.5



Advantages:

Punching Forming Machine for Dustbin Knife CNC 110 Tons Pneumatic Metal 0Punching Forming Machine for Dustbin Knife CNC 110 Tons Pneumatic Metal 1



Punching Forming Machine for Dustbin Knife CNC 110 Tons Pneumatic Metal 2Punching Forming Machine for Dustbin Knife CNC 110 Tons Pneumatic Metal 3
