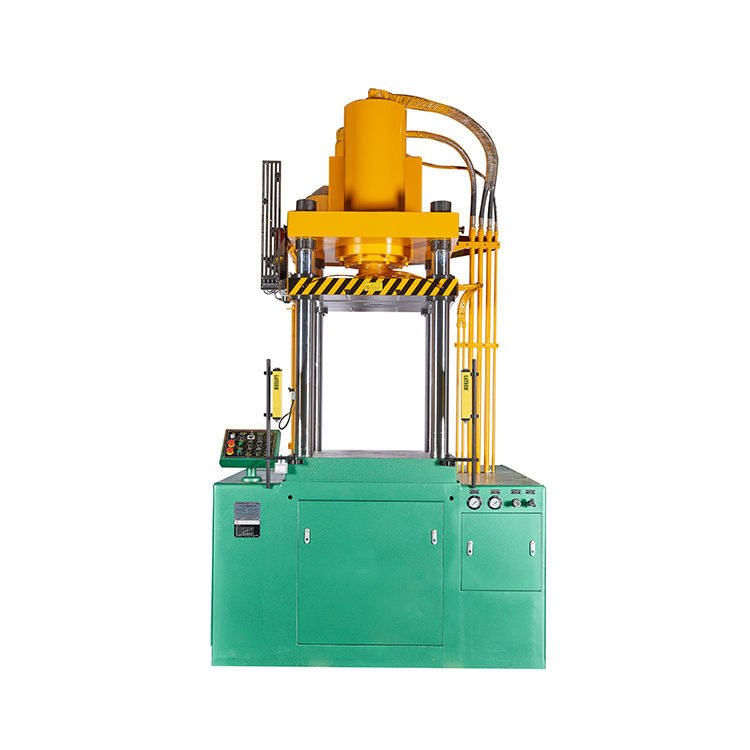

Industrial Automatic Pot Making Machine With CU ISO Certified

1 set
MOQ
Negotiable
Price
Industrial Automatic Pot Making Machine With CU ISO Certified
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

ISO Automatic Pot Making Machine

,

CU Automatic Pot Making Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YD65A-75T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Pot Making Machine Stainless Steel INDIA Field Maintenance and Repair Service GEAR Engine Spare Parts MOTOR PLC



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:





Item UNIT YZ28G-75 YZ28G-120F YZ28G-150 YZ28G-200F
Main Cylinder Force kN 500 760 1000 1500
Rating Working Pressure Of Hydraulic System MPa 25 20 20.5 20
Return Force kN 50 50 80 57
Cushion Force kN 250 350 500 500
Max. Working Pressure Of Cushion Cylinder MPa 16.5 20 16 20
Ejector Force kN 30 30 30 30
Max. Stroke Of Cushon Cylinder mm 220 200 250 300
Max. Stroke Of Ejector mm 200 165 230 200
Max. Stroke Of Slide Table mm 460 400 540 550
Open Height Max. mm 760 710 940 950
Min mm 300 310 400 400
Slide Speed Down mm/s 225 290 240 260
Pressure mm/s 15-25 24/45 18-28 23
Up mm/s 220 270 240 230
Cushion Speed UP mm/s 105 90 90 90
Down mm/s down with slide table
Power Of Motor Kw 7.5 15 18.5 30
Dimention Of Working Table (LRxFB) mm2 500x560 600x700 650x750 700x880
Power Of Servo Motor Kw   21.5 28.3 28.3
Dimention Of Machine(LRxFBxH) mm2 1650x1500x2900 1800x1800x3000 1900x1850x3700 1900x2100x3550







Specifications:

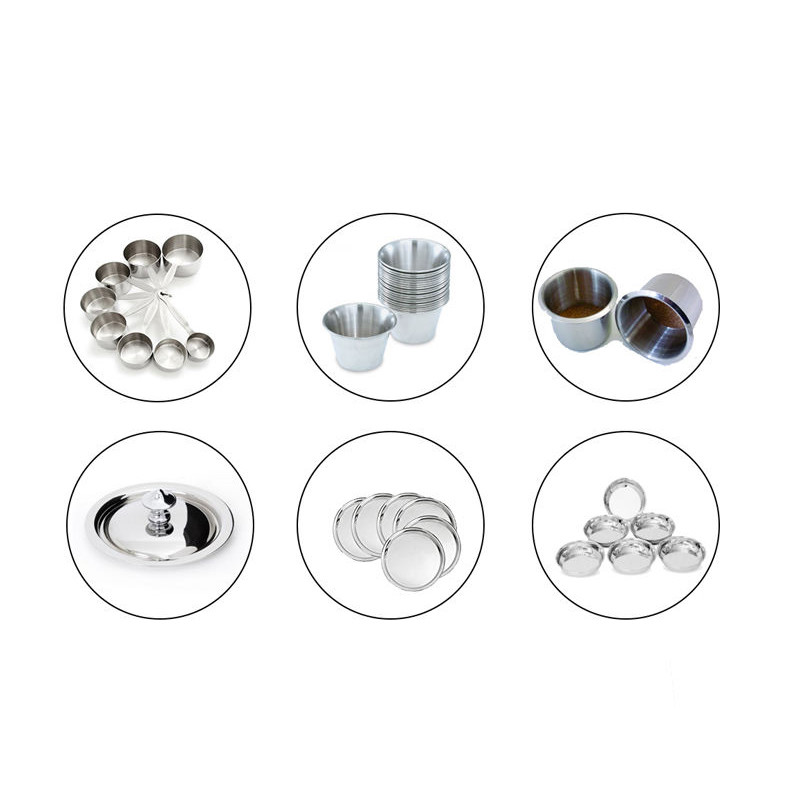

This machine and we help you manufacture products like: sink, chafing dish & bakery tray, stainless steel cookware set, stainless steel kettle. Available for, but not limited for.







Advantages:



Industrial Automatic Pot Making Machine With CU ISO Certified 0Industrial Automatic Pot Making Machine With CU ISO Certified 1Industrial Automatic Pot Making Machine With CU ISO Certified 2Industrial Automatic Pot Making Machine With CU ISO Certified 3Industrial Automatic Pot Making Machine With CU ISO Certified 4Industrial Automatic Pot Making Machine With CU ISO Certified 5Industrial Automatic Pot Making Machine With CU ISO Certified 6
