Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
| Description | Unit | YZ28G-75 | YZ28G-100 | YZ28G-150 | YZ28G-200 | YZ28G-250 | YZ28G-300 | YZ28G-350 | |
| Nominal force | kN | 500 | 650 | 1000 | 1500 | 1500 | 2000 | 2500 | |
| Hydraulic system rated working pressure | MPa | 20 | 20 | 20 | 20 | 20 | 25 | 21 | |
| Return nominal force | kN | 50 | 50 | 110 | 140 | 140 | 180 | 125 | |
| Nominal force of lower cylinder blank holder | kN | 250 | 350 | 500 | 500 | 1000 | 1000 | 1000 | |
| Lower cylinder liquid maximum working pressure | kN | 20 | 40 | 30 | 30 | 30 | 30 | 30 | |
| Lower piston maximum stroke | mm | 200 | 200 | 250 | 300 | 300 | 300 | 300 | |
| Maximum stroke of return cylinder | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
| Maximum travel of movable beam | mm | 450 | 500 | 540 | 550 | 550 | 550 | 600 | |
| Distance from movable beam to work surface | Max | mm | 700 | 800 | 940 | 950 | 950 | 1000 | 1110 |
| Min | mm | 250 | 300 | 400 | 400 | 400 | 450 | 510 | |
| Lifting speed of movable beam | No-load downlink | mm/s | 305 | 300 | 330 | 340 | 340 | 330 | 350 |
| pressurized | mm/s | 17/24/41 | 19/44 | 19~38 | 22/34 | 22/34 | 18/29 | (13)18/31 | |
| return stroke | mm/s | 375 | 280 | 300 | 350 | 350 | 320 | 350 | |
| Blank holder piston speed | Up | mm/s | 115 | 110 | 110 | 150 | 110 | 100 | 105 |
| Down | mm/s | Follow beam | Follow beam | Follow beam | Follow beam | Follow beam | Follow beam | Follow beam | |
| Motor power | kW | 7.5 | 15 | 18.5 | 30 | 30 | 37 | 37 | |
| Effective area of worktable (left and right × front and rear) | mm2 | 520×580 | 550×620 | 650×750 | 700×880 | 700×880 | 750×900 | 800×990 | |
Specifications:

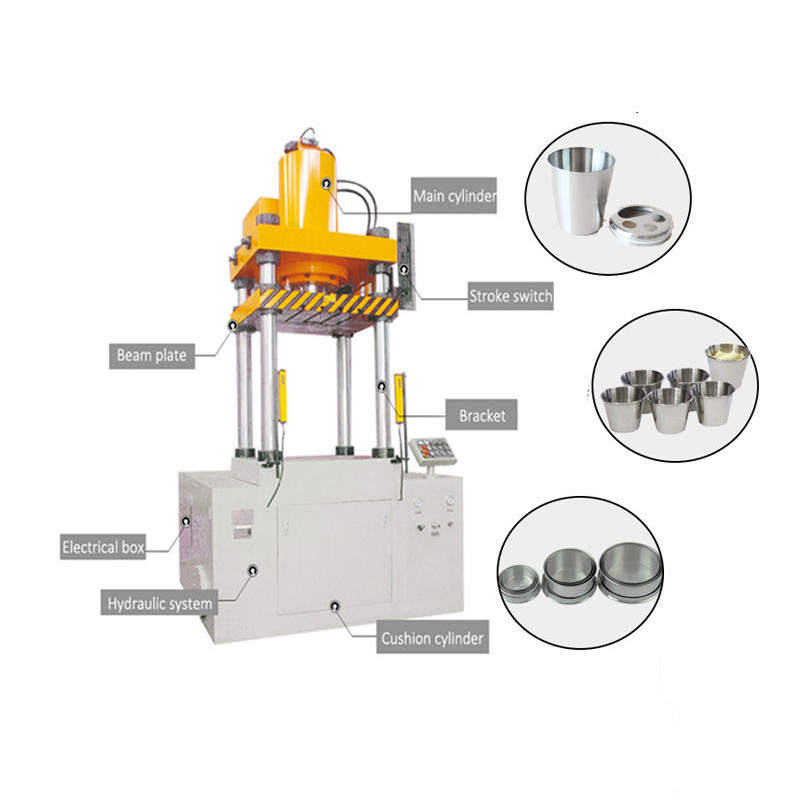

This machine and we help you manufacture products like: sink, chafing dish & bakery tray, stainless steel cookware set, stainless steel kettle. Available for, but not limited for.
