Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Efficiency
8-12s/pcs(Dia. x H: 200mm x 100mm),about 2500pcs/8hours
2. Productions succeed 99%
Save cost in as less damage as possible
3. Feedback by clients that machine life over 10 years
4. Easy maintenance
Semi-auto lubricate system
5. Easy operation
Unskilled ladies or freshman can operate the machine

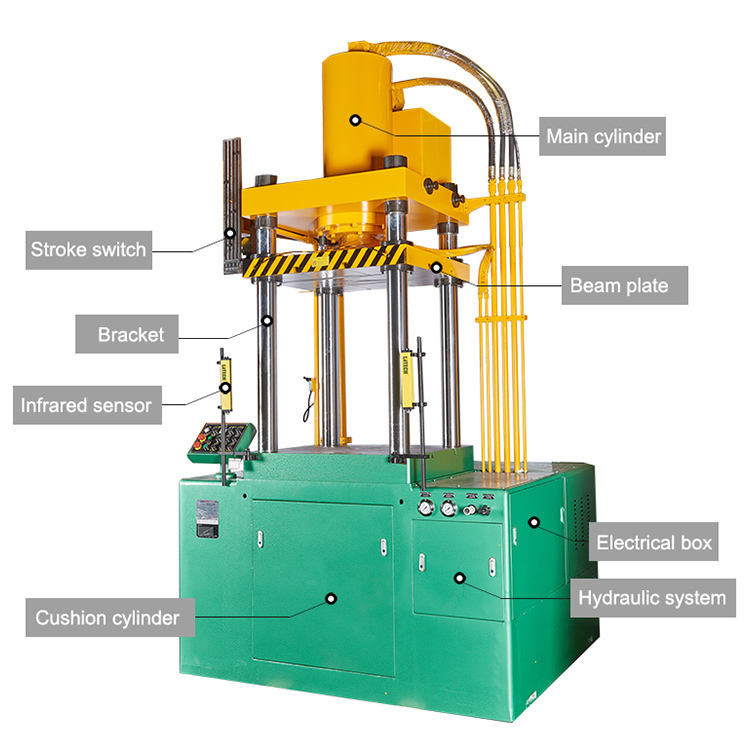

6. Three safe-protection systems
A. Double start button
B. Infrared sensor protect the workers safe
C. Max stroke limited sensor protects the main cylinder and workers
7. Most of components are international brands: Omron,
Schneider, Mitsubishi or Idec
Specifications:
| Item | UNIT | YZ28G-75 | YZ28G-120F | YZ28G-150 | YZ28G-200F | YZ28G-230 | |
| Main Cylinder Force | kN | 500 | 760 | 1000 | 1500 | 1600 | |
| Rating Working Pressure Of Hydraulic System | MPa | 25 | 20 | 20.5 | 20 | 22.5 | |
| Return Force | kN | 50 | 50 | 80 | 57 | 100 | |
| Cushion Force | kN | 250 | 350 | 500 | 500 | 750 | |
| Max. Working Pressure Of Cushion Cylinder | MPa | 16.5 | 20 | 16 | 20 | 20 | |
| Ejector Force | kN | 30 | 30 | 30 | 30 | 30 | |
| Max. Stroke Of Cushon Cylinder | mm | 220 | 200 | 250 | 300 | 300 | |
| Max. Stroke Of Ejector | mm | 200 | 165 | 230 | 200 | 200 | |
| Max. Stroke Of Slide Table | mm | 460 | 400 | 540 | 550 | 550 | |
| Open Height | Max. | mm | 760 | 710 | 940 | 950 | 950 |
| Min | mm | 300 | 310 | 400 | 400 | 400 | |
| Slide Speed | Down | mm/s | 225 | 290 | 240 | 260 | 300 |
| Pressure | mm/s | 15-25 | 24/45 | 18-28 | 23 | 16/27 | |
| Up | mm/s | 220 | 270 | 240 | 230 | 220 | |
| Cushion Speed | UP | mm/s | 105 | 90 | 90 | 90 | 90 |
| Down | mm/s | down with slide table | |||||
| Power Of Motor | Kw | 7.5 | 15 | 18.5 | 30 | 30 | |
| Dimention Of Working Table (LRxFB) | mm2 | 500x560 | 600x700 | 650x750 | 700x880 | 880x990 | |
| Power Of Servo Motor | Kw | 21.5 | 28.3 | 28.3 | 36.7 | ||
| Dimention Of Machine(LRxFBxH) | mm2 | 1650x1500x2900 | 1800x1800x3000 | 1900x1850x3700 | 1900x2100x3550 | 2200x2150x3800 | |
| Item | UNIT | YZ28G-280 | YZ28G-350F1 | YZ28G-350F2 | YZ28G-400E | YZ28G-500 | |
| Main Cylinder Force | kN | 2000 | 2500 | 2350 | 2500 | 3000 | |
| Rating Working Pressure Of Hydraulic System | MPa | 25 | 20 | 20 | 20 | 20 | |
| Return Force | kN | 120 | 140 | 160 | 140 | 220 | |
| Cushion Force | kN | 1000 | 1000 | 1150 | 1500 | 2000 | |
| Max. Working Pressure Of Cushion Cylinder | MPa | 25 | 26 | 24 | 25 | 25 | |
| Ejector Force | kN | 30 | 30 | 30 | 30 | 50 | |
| Max. Stroke Of Cushon Cylinder | mm | 300 | 300 | 300 | 200 | 300 | |
| Max. Stroke Of Ejector | mm | 200 | 220 | 220 | 220 | 220 | |
| Max. Stroke Of Slide Table | mm | 550 | 600 | 600 | 600 | 600 | |
| Open Height | Max. | mm | 1000 | 1110 | 1110 | 1110 | 1117 (1110) |
| Min | mm | 450 | 510 | 510 | 510 | 517 (510) | |
| Slide Speed | Down | mm/s | 320 | 300 | 240 | 300 | 180 |
| Pressure | mm/s | 18/30 | 11/27 | 13/31 | 11/17 | 14/38 | |
| Up | mm/s | 200 | 190 | 190 | 190 | 185 | |
| Cushion Speed | UP | mm/s | 80 | 80 | 80 | 80 | 70 |
| Down | mm/s | down with slide table | |||||
| Power Of Motor | Kw | 37 | 30 | 30 | 30 | 55 | |
| Dimention Of Working Table (LRxFB) | mm2 | 880x990 | 800(in column)x990 | 900x1050 | 1200(in column)x1000 | 1100x1100 | |
| Power Of Servo Motor | Kw | 36.7 | 40.5 | 40.5 | 40.5 | ||
| Dimention Of Machine(LRxFBxH) | mm2 | 2250x2350x4100 | 2200x2350x4200 | 2400x2400x4200 | 2500x2350x4300 | 3100x2150x4600 | |
