Product Description:

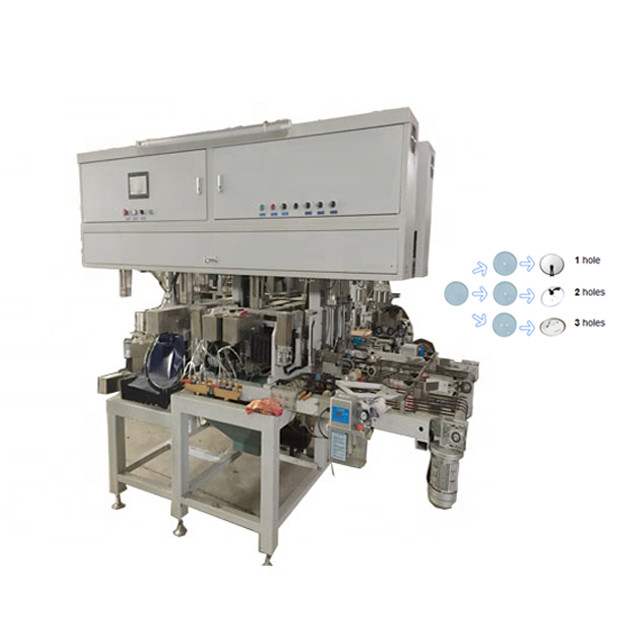

Fourteen shaft automatic punching machine series,glass can be one-time processing of three holes at the same time,also can be two holes or single hole processing,the whole production process automatic, manual , its advantage, operating the machine is a high degree of automation, adapted to the decorative glass,the glass lid and electronic glass automatic punching.
Quick Details:
Holes numer | 1/2/3 holes |
Glass thickness | 3--6 mm |
Holes drilling size | 5-10 mm |
Drilling speed | ≤ 800pcs/H |
Working air pressure | 0.6-0.8Mpa |
Drilling water pressure | 0.4-0.6Mpa |
Hole diameter | 5 ~ 12 mm |
Capacity | 800pcs/H |
Min.distance between holes with glass disc edge | 15mm |
Max glass disc size | Ø450mm |
Specifications:
| Description | |
| K2800# glass slab cutting machine 1 | |
| Auto cutting in length and width. | |
| Advantage: safe operation. | |
| Operator: 1 person. | |
| loading max size | 1950x2440x7mm |
| loading min size | 1500x2000x3mm |
| suction depth | 800mm |
| loading depth | 900mm |
| cutting thickness | 3-7mm |
| loading speed | 8s/pc |
| cutting speed. | 6-8s/pc |
| working air pressure | 6kg |
| power | 6kw |
| overall size | 3200x2750x1300 |
Advantages:
