Home /Products/Cookware Production Line/220V Automatic Pot Making Machine 4 Column 2 Beam Hydraulic Press

220V Automatic Pot Making Machine 4 Column 2 Beam Hydraulic Press

1 set
MOQ
Negotiable
Price
220V Automatic Pot Making Machine 4 Column 2 Beam Hydraulic Press
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 1500
Return Force (kN): 30 KN
Machine Type: Four-column Two-beam Hydraulic Press
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2620*1680*6390
Weight (T): 60 T
Motor Power (kw): 75 Kw
Highlight:

220V Automatic Pot Making Machine

,

Automatic Pot Making Machine 4 Column

,

Hydraulic Press Automatic Pot Making Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: QJY325-300
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Aluminium Pot Making Power Press Machine hydraulic press for making pot





Product Description:



Function

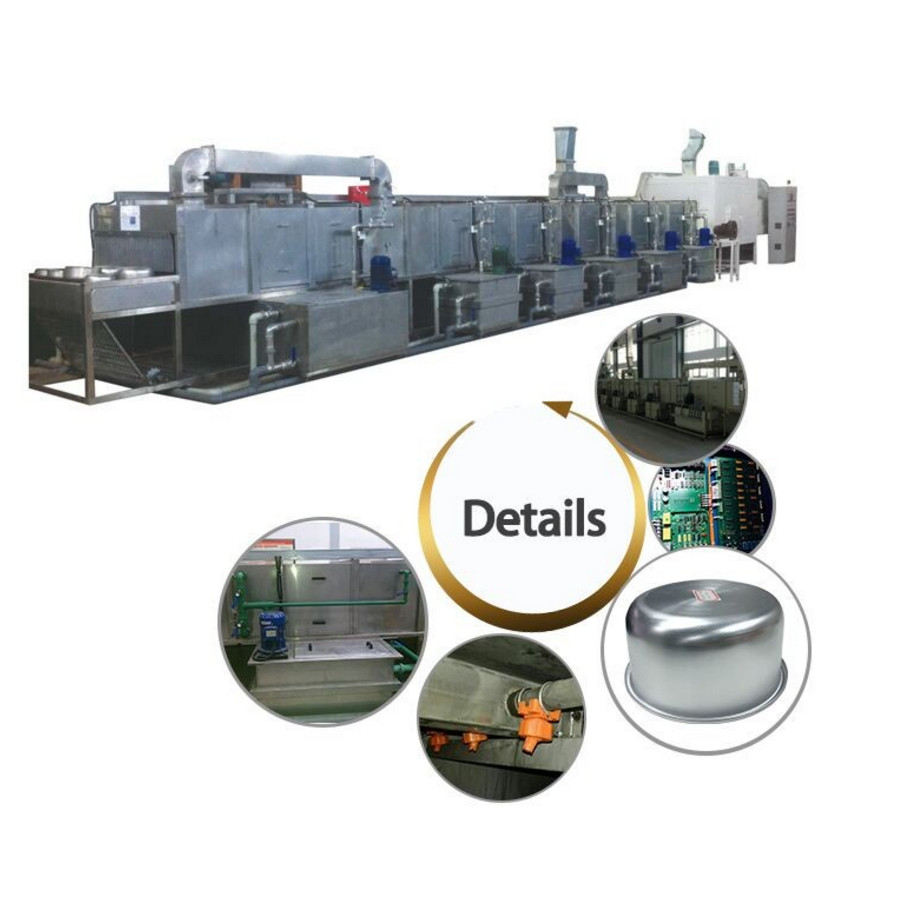

This is machine is mainly used for degreasing and removing wax after deep drawing
Advantages
1, Heating way optional: electricity, natural gas, steam
2, Multiple shapes& diameters( except narrow- neck kettles or flasks)
3,Clean & dry products 365 days/year;no matter dry matter season or rainy season, no matter temperature
5, Save land, drying yard free

Parameters
1, Dimension: 24800*1730*2400 mm / 27400*1730*2400 mm (L*W*H)
2, Process flow (customized)
work piece loading---hot water or hot alkali pre--washing(optional)--- tap water spraying(optional )---1st clean watering --acid
washing-- tap water spraying(optional to use)---2nd clean water washing ---3rd clean water washing---DM water
spraying(optional)---water blowing--drying---work piece discharge
3, Drying temperature: ≤120°C adjustable or auto constant temperature(standard model)
4, Water liquid: degresaing agent(alkali) / wax removing agent (mix in certain ration)
5, Water consumption: 1.5-2.5 T/ Hour
6, Water requirement: tap water (soft water)





Quick Details:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:



Item YZ28G-120
Main Cylinder Force 760KN
Rating Working Pressure Of Hydraulic System 20Mpa
Return Force 65KN
Cushion Force 350KN
Max.Working Pressure Of Cushion Cylinder 20MPA
Ejector Force 30KN
Max.Stroke Of Cushion Cylinder 200MM
Max.Stroke Of Ejector 200MM
Max.Stroke Of Slide Table 400MM
Max.Open Height 710MM
Min.Open Height 310MM
Down Slide Speed 300MM/S
Pressure Slide Speed 24-47MM/S
Up Slide Speed 270MM/S
Up Cushion Speed 275MM/S
Power of Motor 15KW
Dimension Of Working Table 600*700 MM²
Dimension Of Machine (LR*FB*H) 1800*1800*3000 MM³



Advantages:



220V Automatic Pot Making Machine 4 Column 2 Beam Hydraulic Press 0220V Automatic Pot Making Machine 4 Column 2 Beam Hydraulic Press 1220V Automatic Pot Making Machine 4 Column 2 Beam Hydraulic Press 2
