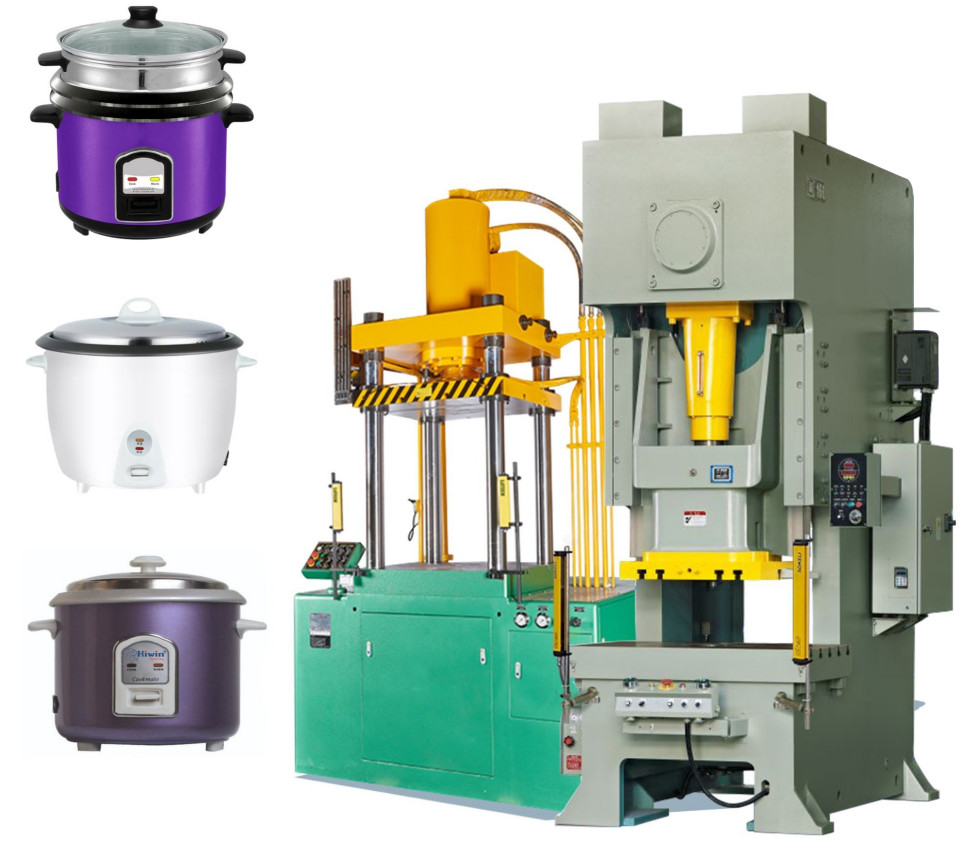

Multifunctional Cookware Production Line , 4 Column Deep Drawing Press Machine

1 set
MOQ
Negotiable
Price
Multifunctional Cookware Production Line , 4 Column Deep Drawing Press Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 1500
Return Force (kN): 30 KN
Machine Type: Four-column Two-beam Hydraulic Press
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2620*1680*6390
Weight (T): 60 T
Motor Power (kw): 75 Kw
High Light:

Cookware Production Line Multifunctional

,

Cookware Production Line Deep Drawing

,

4Column Deep Drawing Press Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G-200
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

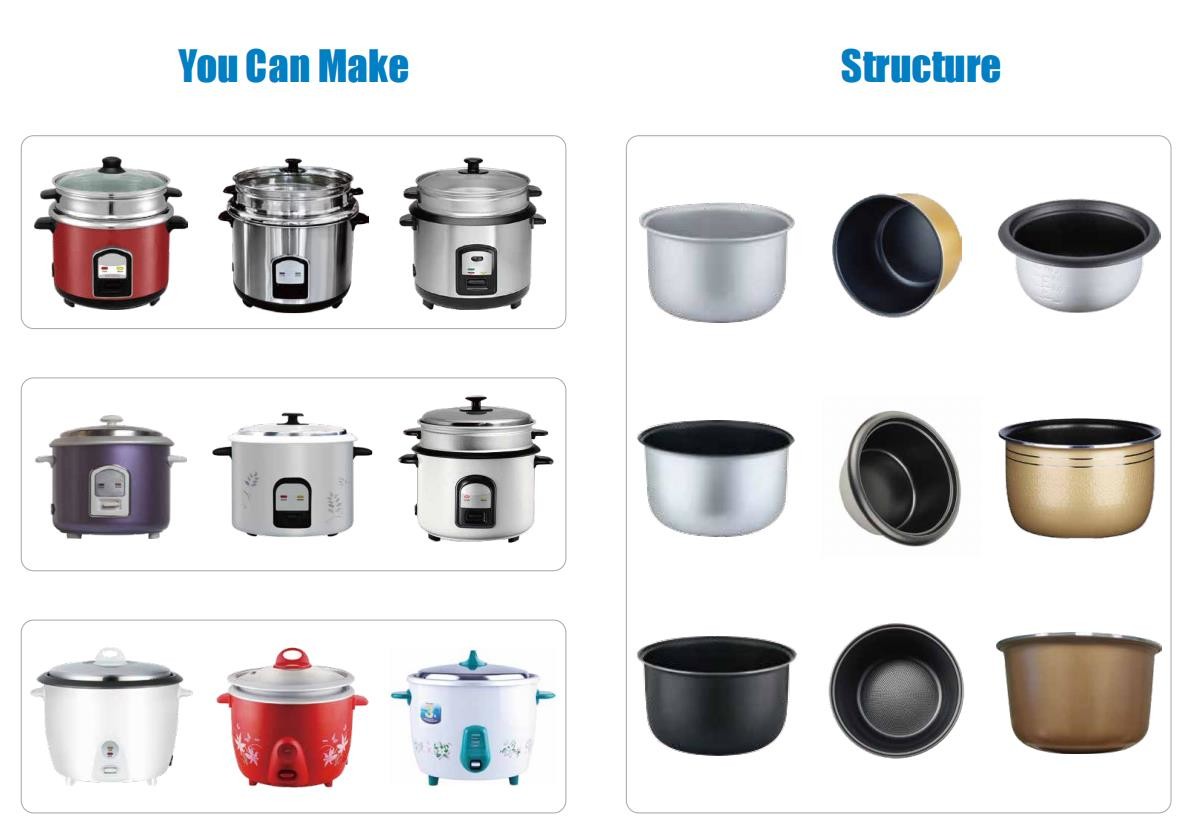

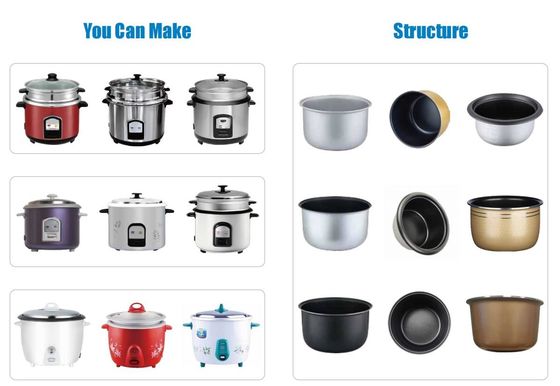

Rice cookware deep drawing machine rice cooker production line



Product Description:



We Have Pressing Mould For All Kinds Of Cookware.
For Your Need,We Can Set Up A Full Line Of Stainless Steel Sink.

We Guarantee Your Production Success Rate>97.5%.





Quick Details:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:



Item
YZ28G-200
Main cylinder force
1500KN
Rating working pressure of the hydraulic system
20Mpa
Return force
90KN
Cushion force
500KN
Cushion cylinder Max.pressure
20MPA
Ejection capacity
30KN
Max. stroke of cushion cylinder
300MM
Max. stroke of ejector
200MM
Max. stroke of slide table
550MM
Open height
Max : 950MM
Min : 400MM
Slide speed
Down : 450MM/S
Pressure : (22) 32/54 MM/S
Return : 480MM/S
Power of motor
30KW
Dimension of working table (RL*FB)
700*880 MM²
Dimension of machine(RL*FB*H)
1950*2100*3700MM²





Advantages:



Multifunctional Cookware Production Line , 4 Column Deep Drawing Press Machine 0Multifunctional Cookware Production Line , 4 Column Deep Drawing Press Machine 1Multifunctional Cookware Production Line , 4 Column Deep Drawing Press Machine 2
