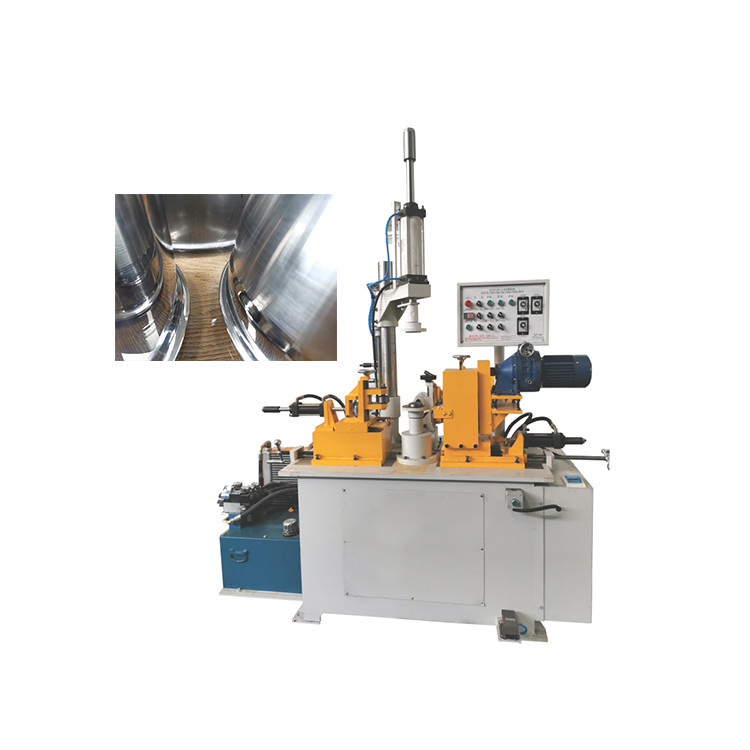

Cookware production line Edge Cutting Trimming and Beading Crimping Machine
Product Description:
Quick Details:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Specifications:
| Description | unit | YZ28G-150 | YZ28G-200 | YZ28G-250 | YZ28G-300 | YZ28G-350 | |
| Nominal force | kN | 1000 | 1500 | 1500 | 2000 | 2500 | |
| Hydraulic system rated working pressure | MPa | 20 | 20 | 20 | 25 | 20 | |
| Return nominal force | kN | 110 | 140 | 140 | 180 | 125 | |
| Nominal force of lower cylinder blank holder | kN | 500 | 500 | 1000 | 1000 | 1000 | |
| Lower cylinder liquid maximum working pressure | MPa | 20 | 20 | 26 | 26 | 26 | |
| Nominal force of return cylinder | kN | 30 | 30 | 30 | 30 | 30 | |
| Lower piston maximum stroke | mm | 250 | 300 | 300 | 300 | 300 | |
| Maximum stroke of return cylinder | mm | 200 | 200 | 200 | 200 | 200 | |
| Maximum travel of movable beam | mm | 540 | 550 | 550 | 550 | 600 | |
| Distance from movable beam to work surface | Max | mm | 940 | 950 | 950 | 1000 | 1110 |
| Min | mm | 400 | 400 | 400 | 450 | 510 | |
| Lifting speed of movable beam | No-load downlink | mm/s | 350 | 350 | 350 | 350 | 400 |
| pressurized | mm/s | 41 | 36 | 36 | 32 | 21/35 | |
| return stroke | mm/s | 350 | 350 | 350 | 345 | 400 | |
| Blank holder piston speed | Up | mm/s | 125 | 160 | 115 | 115 | 115 |
| Down | mm/s | Follow beam | Follow beam | Follow beam | Follow beam | Follow beam | |
| Motor power | kW | 31 | 36 | 36 | 49 | 36 | |
| Effective area of worktable (left and right × front and rear) | mm2 | 650×750 | 700×880 | 700×880 | 750×900 | 800×990 | |

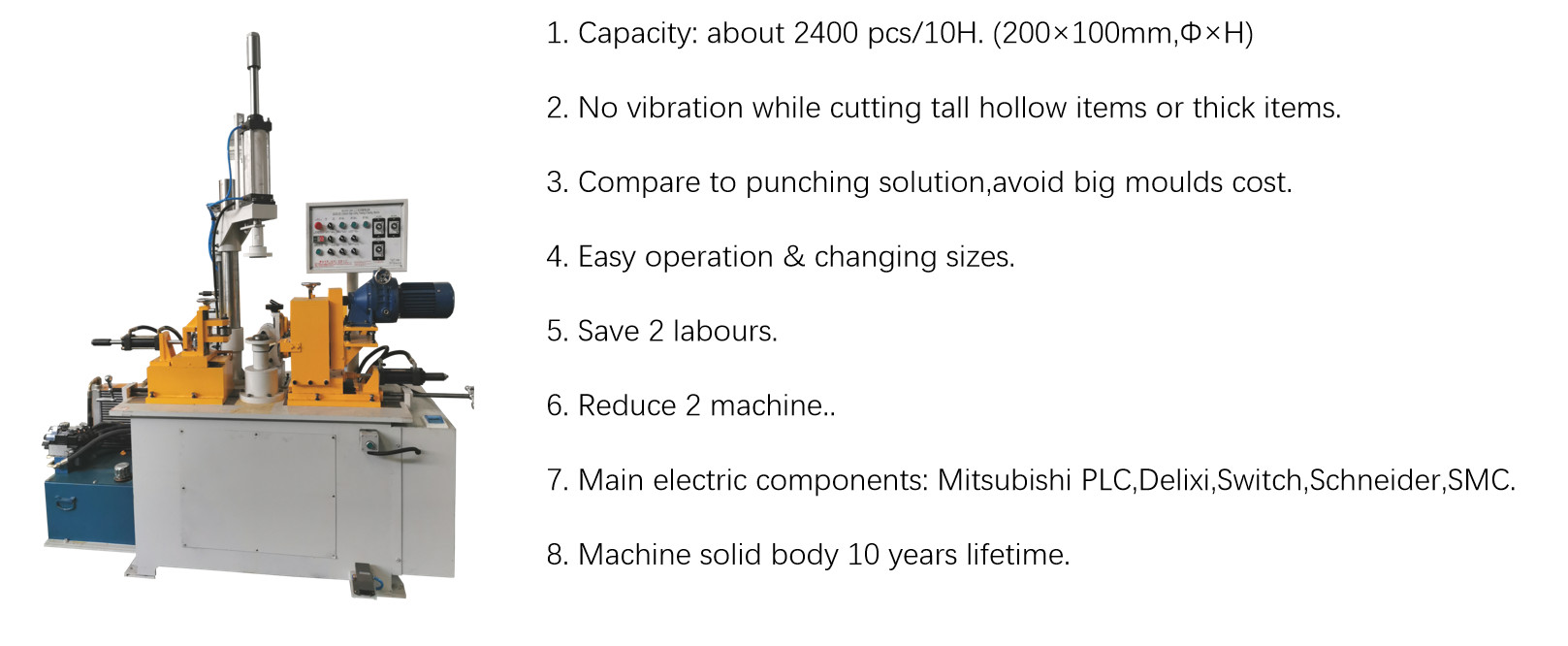

Advantages:
