Non Stick Inner Outer Cookware Production Machine 4 Column 2 Beam Hydraulic Press Type

1 set
MOQ
Negotiable
Price
Non Stick Inner Outer Cookware Production Machine 4 Column 2 Beam Hydraulic Press Type
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 1500
Return Force (kN): 30 KN

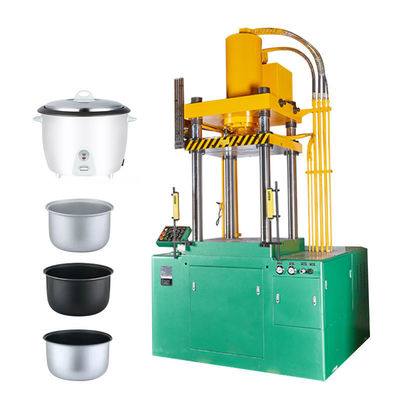

Machine Type: Four-column Two-beam Hydraulic Press
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2620*1680*6390
Weight (T): 60 T
Motor Power (kw): 75 Kw
Highlight:

Non Stick Cookware Production Machine

,

Outer Cookware Production Machine

,

Cookware Production Machine 4Column
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: Y28-1100
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

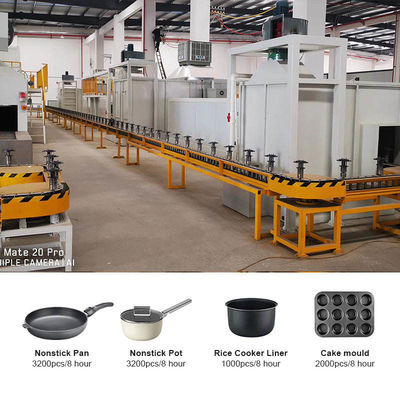

Non-stick cookware production machine line inner and outer



Product Description:



1. Unskilled ladies or freshman can open the machine
2. Productions succeed ≥ 99%.
3. Save cost in as less damage as possible
4. Easy maintenance
5. Semi-auto lubricate system
6. Quality control
7. International brands





Quick Details:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:



Automatic Inside&Outside Non-stick,Cearmic Coating Line
Workpiece

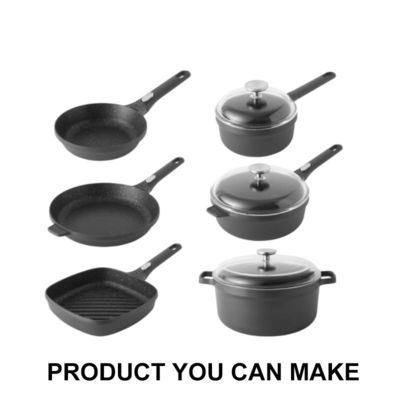

die casting pot,die casting frypan,forge pot,forge pan,deep drawing pan,deep drawing pot,grill pan,tawa
Finish
(PTFE),ceramic coating,marble coating,high tempreture color painting
Standard size
10 1/4" (total size range 4 3/4" to 12 1/2")
Estmated capacity
8000pcs,4000pcs,2000pcs,1000pcs or 500pcs per day in 8 hours
Control system
Mitshubish PLC,EMI,Schneider electrical components
All coating system
Area size: 5000-500 SQM
Inside processes
1.washing&drying 2.sand blasting 3.dust blowing 4.pre-heating for ceramic coating 5.inside ceramic base coating 6.furnace
7.mid-layer ceramic coating 8.surface ceramic coating 9.final furnace
Outside Processes
1.surface grinding 2. dust blowing 3.pre-heating oven 4.base color paint coating 5.surface color paint coating 6.furnace
Energy sources
electricity+gas
Advantage 1
Dupon,Whitford authorized coating line manufactruer
Advantage 2
about 20% energy saving





Advantages:



Non Stick Inner Outer Cookware Production Machine 4 Column 2 Beam Hydraulic Press Type 0Non Stick Inner Outer Cookware Production Machine 4 Column 2 Beam Hydraulic Press Type 1Non Stick Inner Outer Cookware Production Machine 4 Column 2 Beam Hydraulic Press Type 2
