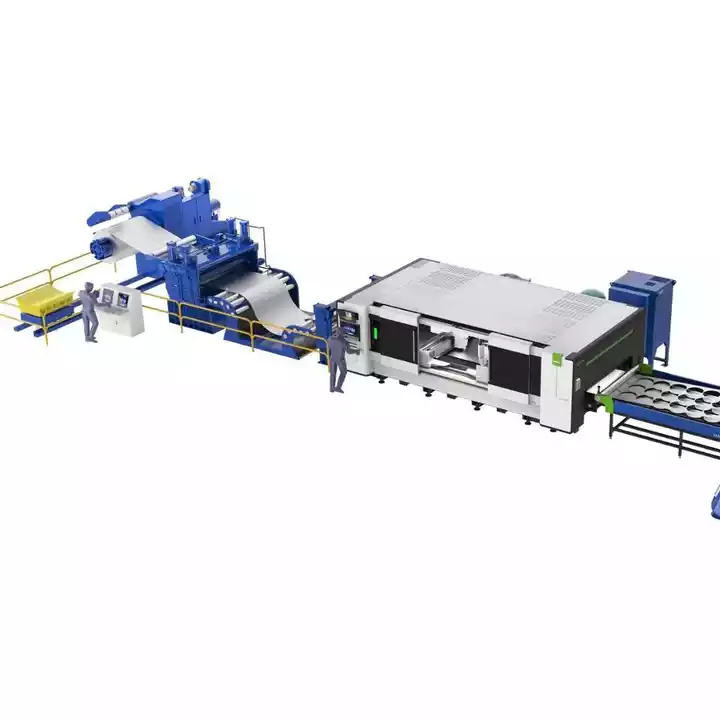

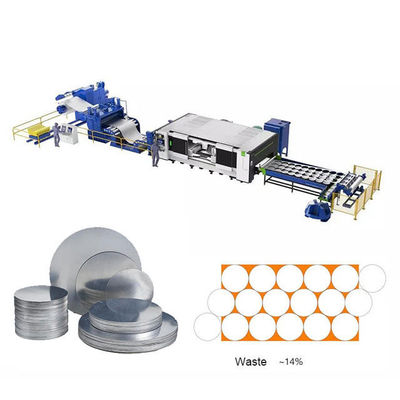

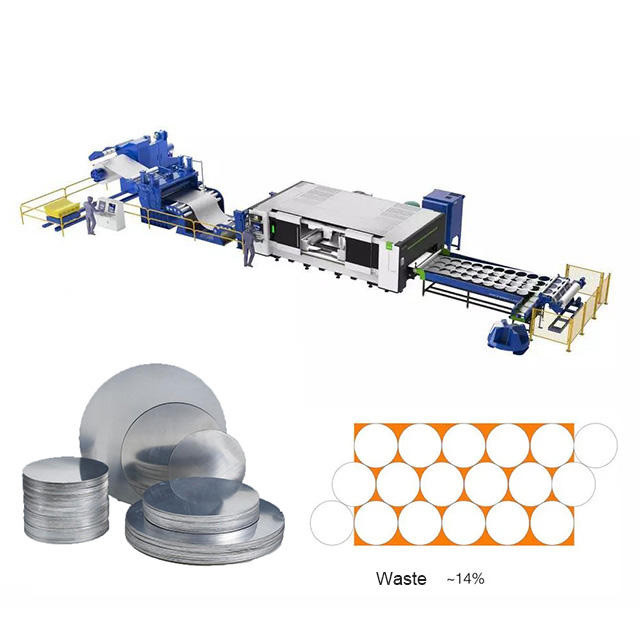

Zigzag Automatic Stainless Steel Coil Sheet Plate Punching Line Circle Blanking Auto Feeder

1 set
MOQ
Negotiable
Price
Zigzag Automatic Stainless Steel Coil Sheet Plate Punching Line Circle Blanking Auto Feeder
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G0200T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Zigzag Automatic Stainless Steel Coil Sheet Plate Punching Line Circle Blanking Auto Feeder



Product Description:



1. Hydraulic press or mechanical press

2. L310C automatic feeding manipulator(optional for 201#)

3. Annealing machine (optional for 201#)

4. Cooling system (optional for 201#)

5. L312 automatic manipulator

6. 2nd deep drawing or lid slot forming base on each project





Quick Details:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:



Capacity
16800-20000pcs/8hour
Material Width
1000/1300/1600mm
Material Thickness
0.5-2.0mm
Coil Inner Dia
450-530mm
Coil Outer Dia.
1300mm
Material Weight
8-10Ton
Feeding Tolerance
200±0.2mm
Defection Tolerance
400±0.4mm
Speed
50 times/min
Total Power
30/45/50
Production Areas
13*7m/13*7.3m/13*7.6m





Advantages:



Zigzag Automatic Stainless Steel Coil Sheet Plate Punching Line Circle Blanking Auto Feeder 0Zigzag Automatic Stainless Steel Coil Sheet Plate Punching Line Circle Blanking Auto Feeder 1Zigzag Automatic Stainless Steel Coil Sheet Plate Punching Line Circle Blanking Auto Feeder 2
