Home /Products/Cookware Production Line/semi auto 4 Column Cookware Production Line 500 Ton Hydraulic Press Machine Deep Drawing for cookware pot and pan

semi auto 4 Column Cookware Production Line 500 Ton Hydraulic Press Machine Deep Drawing for cookware pot and pan

1 set
MOQ
Negotiable
Price
semi auto 4 Column Cookware Production Line 500 Ton Hydraulic Press Machine Deep Drawing for cookware pot and pan
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
Highlight:

4Column Cookware Production Line

,

Hydraulic Press Cookware Production Line

,

Cookware 500 Ton Hydraulic Press Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G0200T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Useful semi auto 4 Column Cookware Production Line 500 Ton Hydraulic Press Machine Deep Drawing for cookware



Product Description:



1. Hydraulic press or mechanical press

2. L310C automatic feeding manipulator(optional for 201#)

3. Annealing machine (optional for 201#)

4. Cooling system (optional for 201#)

5. L312 automatic manipulator

6. 2nd deep drawing or lid slot forming base on each project





Quick Details:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:



Item
Unit
YZ28G-200
YZ28G-250
YZ28G-300
YZ28G-350
Main cylinder force
KN
1500
1500
2000
2500
Rating working pressure of hydraulic system
MPA
21
21
25
21
Return force
KN
140/110
140/110
180-125
180
Cushion force
KN
500
1000
1000
1000
Max. working pressure of cushion cylinder
MPA
20
26
26
26
Ejector force
KN
30
30
30
30
Max. stroke of cushion cylinder
MM
300
300
300
300
Max. stroke of ejector
MM
200
200
200
200
Max. stroke of slider table
MM
550
550
550
600
Open height
Max.
MM
950
950
1000
1110
Min
MM
400
400
450
510
Slide speed
Down
MM/S
250
250
330
245
Pressure
MM/S
25
25
20~29
(13)19/33
Up
MM/S
255
255
290
250
Cushion speed
Up
MM/S
115
85
95
100
Down
MM/S
down with
slide table
down with
slide table
down with
slide table
down with
slide table
Power of motor
KW
30
30
37
37
Dimension of working table(LR*FB)
MM2
700*880
700*880
750*900
800*990
Dimention of machine(LR*FR*H)
MM2
1950*2100*3700
1950*2100*3700
2250*2350*4100
2100*2400*4200





Advantages:

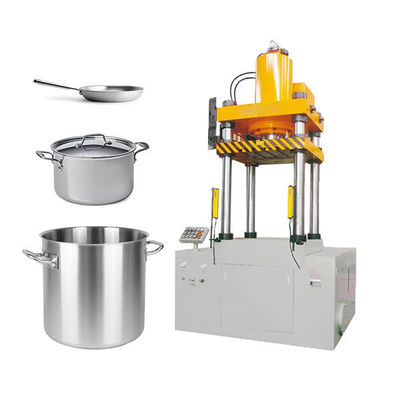

semi auto 4 Column Cookware Production Line 500 Ton Hydraulic Press Machine Deep Drawing for cookware pot and pan 0semi auto 4 Column Cookware Production Line 500 Ton Hydraulic Press Machine Deep Drawing for cookware pot and pan 1semi auto 4 Column Cookware Production Line 500 Ton Hydraulic Press Machine Deep Drawing for cookware pot and pan 2
