Features

Specifications

Model NO.: SP-0180

Application: Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry

Cooling System: Water Cooling

Technical Class: Continuous Wave Laser

Applicable Material: Metal

Structure Type: Gantry Type

Laser Classification: Gaseous Laser

Laser Technology: Laser Control Fault Cutting

Laser Generator System: Max 3000W

Transport Package: Wooden Case

Specification: 3200*2500*1200MM

Trademark: Starpower

Origin: China

HS Code: 90132000

Production Capacity: 50

Highlight:

high-efficiency laser cutting sink machine

high-precision sink production line equipment

kitchen sink making laser cutter

Basic Infomation

Payment & Shipping Terms

Gallery

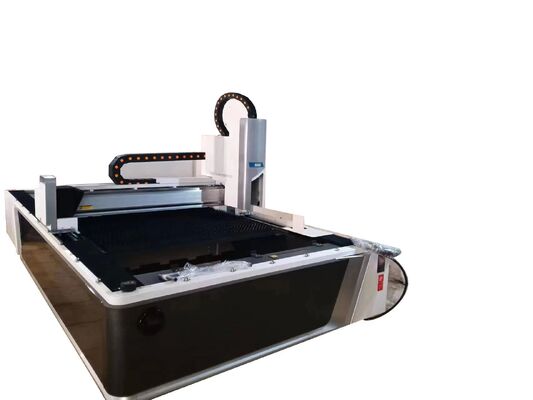

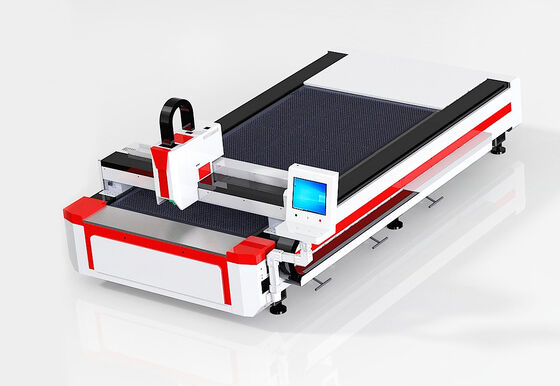

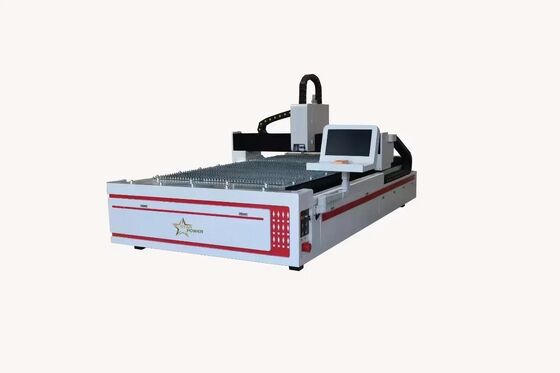

High-Efficiency and High-Precision Laser Cutting Machine Sink Equipment Production Line

Product Description

Product Description

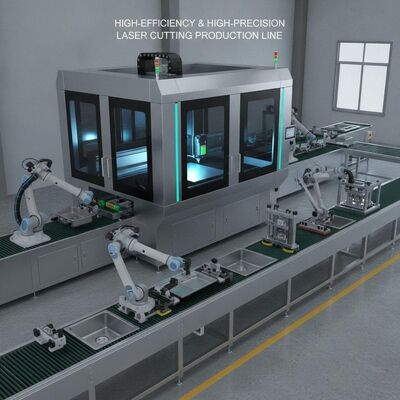

Complete kitchen sink production line handmade sink manufacturing machine, the production line is a saving stainless steel material handmade sink manufacturing method. By splicing stainless steel sheets, the material utilization rate is improved, and the material cost of each sink is saved by about $1. At the same time, the investment in machinery and equipment is less, there is no need to customize the stamping die for the sink of different specifications and sizes, the production is flexible, the new product is put into production quickly and the investment is less. Manufactured kitchen sink high-grade and beautiful, and hot selling.

High-Efficiency and High-Precision Laser Cutting Machine Sink Equipment Production Line 3

Process term	Process introduction	machine	Machine size	floor space		power (Kw)
Process term	Process introduction	machine	Machine size	Length(m)	Width(m)	power (Kw)
Process 1	Steel Coil Laser cutting	Laser cutter line	12000x2600x1950mm	17	2.6	45
Process 2	Sheet welding for Saving Material	Straight Seam Welding Machine	1400x1100x2000mm	1.4	1.1	0.4
Process 3	Sheet Grinding for Saving Material	Sheet Grinding Machine	2250x1550x1800mm	2.3	1.6	3.2
Process 4	Punching of water hole	Deep throat Press machine/J21S-40T	1500x1200x2000mm	1.5	1.2	4
Process 5	Punching for Prebending	Deep throat press machine/J21S-63T	1700x1400x2200mm	1.7	1.4	4
Process 6	Press the water line	Bending machine/30T-1600MM	2600x1400x2000mm	2.6	1.4	3
Process 7	Bending of the sink base	Bending machine/63T-2500MM	2800X1700X2350MM	2.8	1.7	5.5
Process 8	Press arc & bottom corner	Two-In-One Integrated Rolling Seam&Corner Pressing Machine	1300x750x2000mm	1.3	0.75	2.3
Process 9	Welding for vertical seams and bottom corner	CNC Welding Special Machine	1400x1100x2000mm	1.4	1.1	0.4
Process 10	Round corner Of vertical seams grinding (Inside)	Grinding Machine For Round corner Of vertical seams	2550x850x2200mm	2.6	0.85	2.3
Process 11	Repair the Panel's missing corners	CNC Welding Special Machine(for panel repair)	1100x850x1450mm	1.1	0.85	0.4
Process 12	CNC Welding For Panel's Inner Edge	Multi-Axis CNC Welding Special Machine (For panel's inner edge)	1700x1400x1600mm	1.7	1.4	1.3
Process 13	Grinding for the sink's panel	Grinding machine (Abrasive belt type)	2500x1400x1700mm	2.5	1.4	3
Process 14	Grinding for the sink's panel(mirror surface)	Grinding machine	3000x1400x1700mm	3	1.4	3
Process 15	Painting For Sink Bottom Back Side	Manual painting equipment	2200X1800X1600mm	2.2	1.8	4.5
Process 16	Drying after Painting	Drying Oven	13000X1000X1600mm	13	1	30
Total floor space(Includ spaced distance and transportation route):>65m(Length)x 10m(Width)

Our Advantages
Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,We focus on providing kitchen supplies production solutions, including providing production machines, plant layout, production technology output, for you to save worry, labor and money, we wholeheartedly escort your career success.
