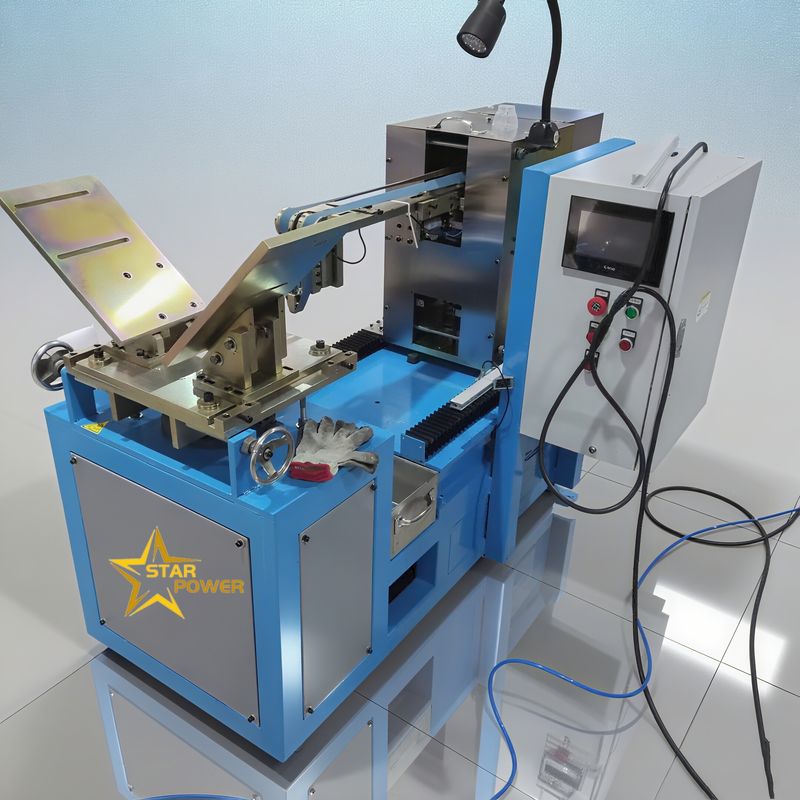

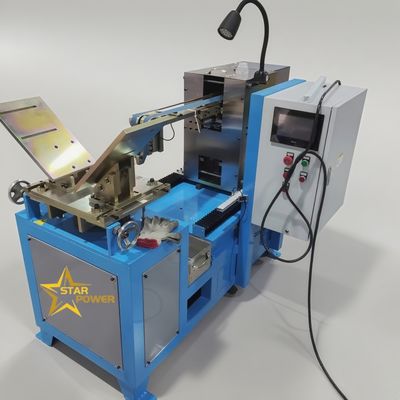

Dual-Table CNC Precision Metal Seam Rolling & Corner Pressing Machine

The MSP-3000Pro Dual-Table CNC Precision Metal Seam Rolling & Corner Pressing Machine is a state-of-the-art industrial equipment engineered for high-precision metal fabrication processes. This advanced machine integrates dual-worktable functionality with computer numerical control to deliver exceptional efficiency, accuracy, and versatility in seam rolling and corner pressing applications across various manufacturing sectors.

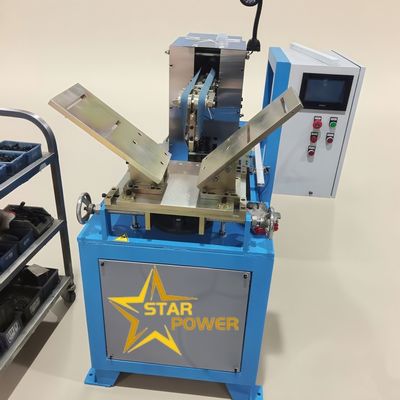

• Dual-Tilting Worktables: Features two independently adjustable metal worktables (480×360mm each) with a tilting range of 0-90°, enabling simultaneous loading/unloading and continuous production workflow.
• Precision Mechanical Arm: Robotic-grade horizontal sliding arm with ball screw drive system, offering positional accuracy of ±0.02mm and repeatability of ±0.01mm.
• Heavy-Duty Frame: Welded steel construction with blue powder-coated finish providing structural rigidity and vibration dampening.
• Integrated Lighting System: Articulating LED gooseneck lamp with brightness adjustment for enhanced workpiece visibility.

• CNC Control System: Industrial-grade PLC with 7-inch color touchscreen HMI
• Axis Configuration: 3-axis servo control with 1000mm/min rapid traverse speed
• Processing Capacity: Mild steel (up to 4mm), stainless steel (up to 3mm), aluminum alloys (up to 5mm)
• Power Requirements: AC 380V ±10%, 50Hz, 3-phase, 4.5kW maximum

• Semi-Automatic Mode combines automated tool movement with manual workpiece loading
• Quick-release tooling system allowing die changes in under 2 minutes
• Safety features including dual-hand start buttons and emergency stop circuit
• Real-time error monitoring with on-screen troubleshooting guides

Designed for precision metal fabrication in industries including: electrical enclosure manufacturing, automotive component production, HVAC ductwork fabrication, kitchenware manufacturing, and furniture hardware production.
