Press Brake Tooling: 6 Types & 5 Bending Methods

December 29, 2023

Latest company case about Press Brake Tooling: 6 Types & 5 Bending Methods

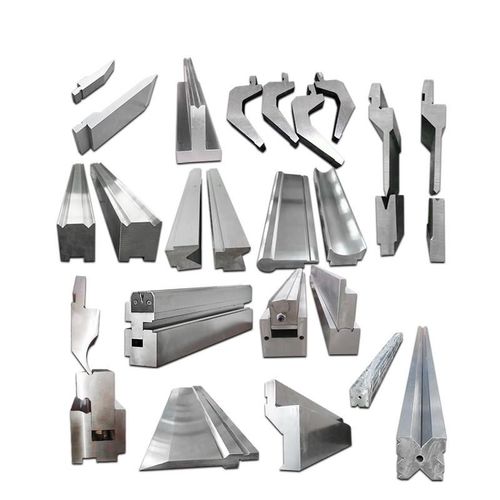

Types of Press Brake Tooling

Press brake tooling are essential components in the sheet metal fabrication industry, enabling the precise bending and shaping of metal sheets. These tools come in a variety of types, each designed for specific applications and bending requirements. In this article, we will explore the different types of press brake tools and their uses.

1. V-Die and Punch:

V-Die and punch sets are the most common and versatile tools used in press brake operations. The V-Die features a V-shaped groove, while the punch is designed to match the groove. This combination is perfect for a wide range of applications because it allows for different bending radii and angles. V-Die and punch sets are essential tools in sheet metal manufacturing because they may be used to make basic bends, U-bends, and channels.

2. Gooseneck Punch:

Gooseneck punches have a unique curved shape that allows for deep and complex bending.These tools come in use especially when constructing pieces that have deep flanges or for making complex shapes that need to be pierced deeper into the metal sheet. Channels, brackets, and other components with sharp angles are frequently made with gooseneck punches.

3. Hemming Tools:

Hemming tools are specifically designed for creating hems or folds in metal sheets. They are frequently employed in the automobile sector for the production of doors and body panels. Hemming tools are available in a variety of profiles to create a range of hemming sizes and shapes, guaranteeing a safe and beautiful edge finish.

4. Radius Tooling:

Radius tooling includes punches and dies designed for creating rounded or curved bends. For applications where sharp angles are not desired, these tools are ideal. Radius tooling is frequently utilized in the fabrication of architectural and ornamental metalwork, railings, and curved metal tubes.

5. Offset and Flattening Tools:

Offset and flattening tools are used to manipulate metal sheets by creating offset bends or flattening previously bent areas. These tools are valuable in cases where a mistake needs correction or when a specific part of the sheet requires flattening before further processing.

6. Specialty Tools:

In addition to the standard press brake tools mentioned above, there is a wide range of specialty tools available for specific applications. These tools may include box and pan brakes for creating complex enclosures, as well as tools for forming louvered openings, embossing, and corrugating metal sheets.

The choice of press brake tool depends on the particular job requirements, including the type of metal, its thickness, and the desired bend angle and radius. Skilled operators often combine various tools to achieve the desired results, demonstrating the versatility of press brake machinery in sheet metal fabrication.


Press Brake Tools Bending Method:

1. Air Bending: This is one of the most common bending methods. In air bending, the workpiece is bent to an angle greater than the die's inside angle without fully pressing the workpiece into the die. This allows for easier adjustment of the bending angle without the need to change the die.

2. Bottoming: In bottoming, the workpiece is fully pressed into the die to achieve precise bending angles and shapes. This method is suitable for applications that require very precise bending.

3. Coining: Coining is a method used for producing high-precision parts where the workpiece is bent and subjected to additional pressure to eliminate deformation in the bend.

4. Drape Forming: Drape forming is a method used for bending complex-shaped workpieces, often in aerospace and automotive industries. In drape forming, the workpiece is pressed into holes with specific shapes to achieve the desired curves.

5. Roll Bending: Roll bending is typically used for rolling and bending materials such as pipes and tubing. In this method, the workpiece is bent into the desired shape using a series of rolling rollers.
